Features
| Title | 2023 CMC S22HD |
| Type | Access Equipment |
| Sub Type | Boom Lift |
| Make | CMC |
| Model | S22HD |
| Year | 2023 |
| Sale Price | POA |
| Listing Type | New |
| Stock Number | 917711 |
| RefCode | TA1199596 |
Description

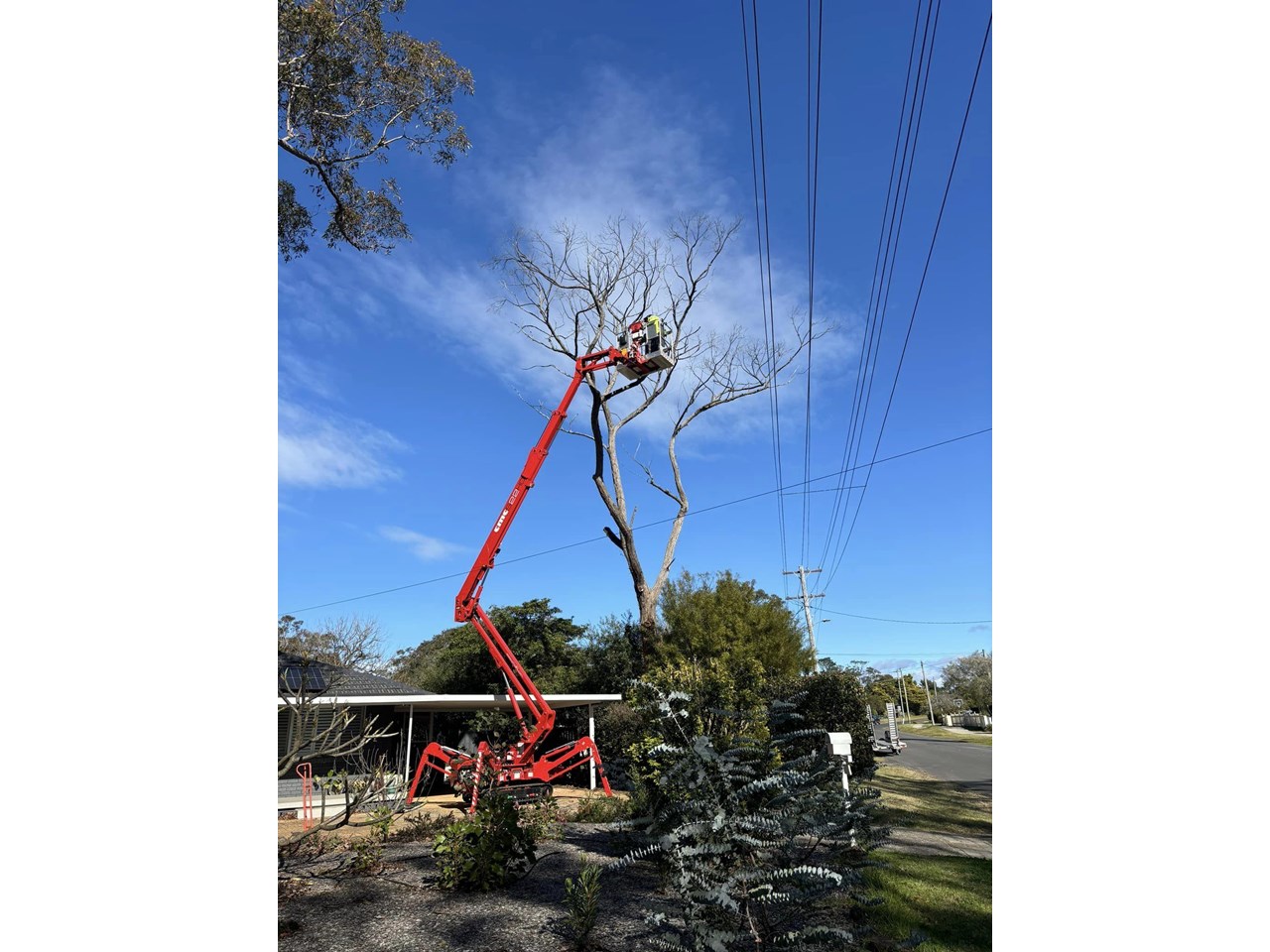

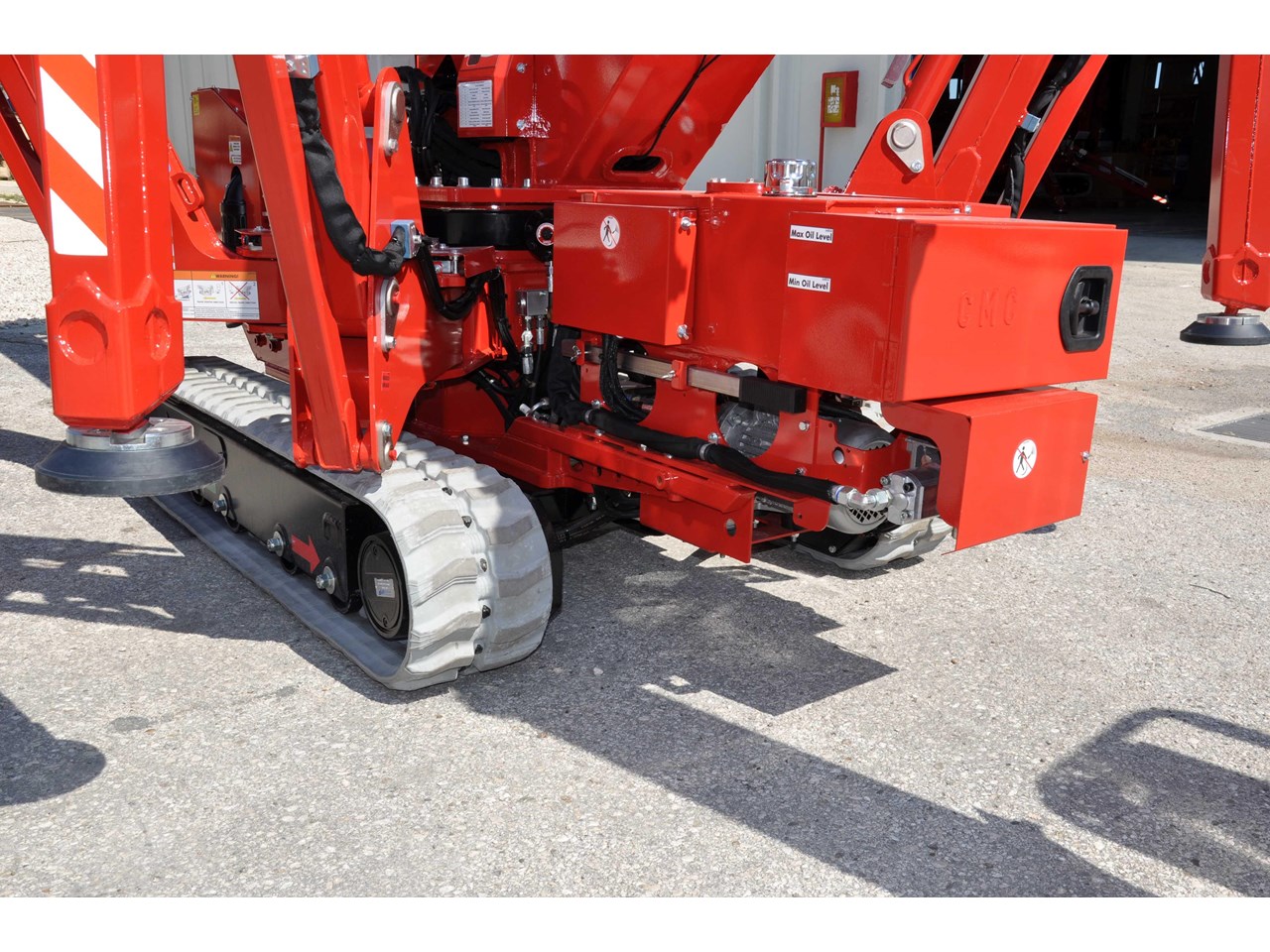

CMC S22HD - 22m Spider Lift
An unrivaled platform
The JIB completes and increases the potential of the HD range. To the potential of the articulated stabilizers with high leveling capacities, is added an unrivaled aerial part: 21.6 meters of maximum working height and 12.50 meters of outreach plus Jib for a maximum load capacity of 230 kg. Thanks to the three working areas and the multiple travel speeds, the S22HD is a track platform with truly exceptional performance; suitable for every job.
Specifications:
Engine: Kubota Diesel
Max. working height 21.6 m
Max. outreach 12,5 m
Basket size 1.4 x 0.7 x 1.1 m
Basket max. load 230 Kg
Turret rotation +/- 355?? (710?? continuous)
Basket rotation +/- 90?? (optional)
Weight 3200 Kg
Click the ``View Brochure`` button to view detailed specifications.
